Build a Face Recognition Attendance System Using Machine Learning from Scratch

Automating roll calls and check-ins doesn't require expensive hardware. With Python, computer vision, and machine learning, you can build a highly accurate, real-time facial recognition attendance tracker using a basic computer webcam.

In this tutorial, we will set up and build a production-ready attendance logging pipeline from absolute scratch.

Prerequisite

This project is beginner-friendly, but you will need Python 3.10 or 3.11 installed on your system. Using a virtual environment (like venv or Conda) is highly recommended to prevent dependency conflicts.

How the System Works

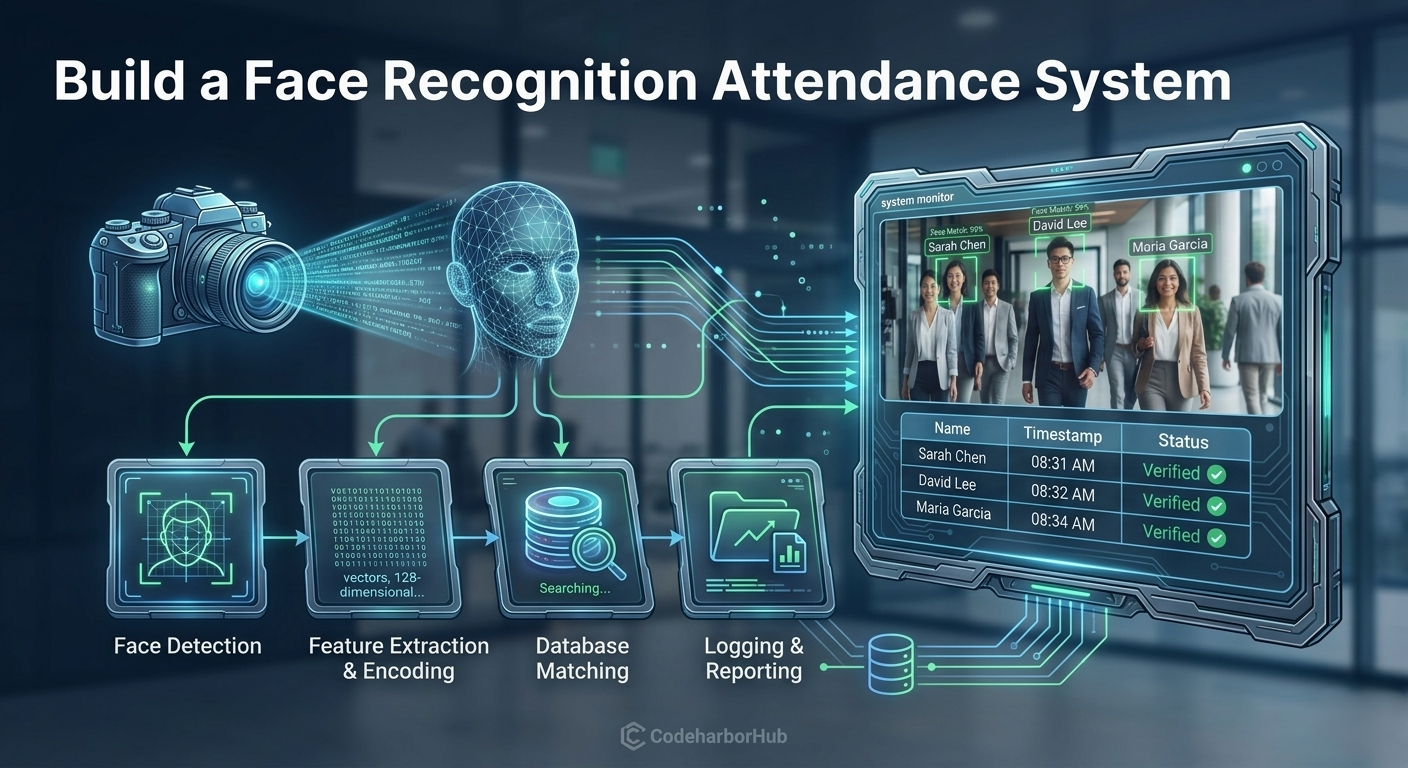

Instead of basic pixel matching, modern computer vision projects use deep convolutional neural networks to extract structural landmarks. Our setup follows a 4-step execution pipeline:

1. Face Detection: Scans live camera streams to isolate coordinates containing human faces using a Histogram of Oriented Gradients (HOG) framework.
2. Facial Feature Vector Encoding: Deep learning models translate face structures into a unique 128-dimensional mathematical vector (a digital facial fingerprint).
3. Distance Matching Classifier: Measures the Euclidean distance between the live camera vectors and your saved database records.
4. Automated Logging: Writes matching profiles along with instant timestamps straight into an un-duplicated .csv text spreadsheet.

---

Step-by-Step Implementation Guide

Step 1: Install Visual Studio C++ Compiler (Windows Only)

The underlying machine learning library (dlib) compiles raw C++ files directly on your machine.

Windows System Requirement

If you are on Windows, the face-recognition installation will fail without a C++ compiler.

1. Download the free Visual Studio Community Edition.
2. During installation, check the box for "Desktop development with C++".
3. Finish installation and restart your system before moving to Step 2.

Step 2: Establish the Project Structure

Create a root workspace folder on your machine titled FaceAttendance and organize your directories exactly like this:

FaceAttendance/
│
├── main.py
├── attendance.csv
└── ReferenceImages/
    ├── elon_musk.jpg
    └── jeff_bezos.jpg

Image Database Optimization

Place exactly one clear, front-facing photo of each user inside the ReferenceImages directory. Name the image file exactly how you want their name to display in records, using underscores for spaces (e.g., albert_einstein.jpg). The script automatically converts underscores to spaces and capitalizes names!

Step 3: Install Required Dependencies

Open your Command Prompt or Terminal, navigate to your root project workspace, and install the required core packages:

pip install opencv-python dlib face-recognition numpy

---

The Complete Python Source Code

Create a file named main.py in your folder and drop in the complete tracking engine script:

import cv2
import numpy as np
import face_recognition
import os
from datetime import datetime

# --- CONFIGURATION & LOADING ---
IMAGE_PATH = 'ReferenceImages'
known_encodings = []
known_names = []

print("⚡ Step 1: Scanning reference database profiles...")
if not os.path.exists(IMAGE_PATH):
    print(f"❌ Error: '{IMAGE_PATH}' directory could not be located.")
    exit()

image_files = os.listdir(IMAGE_PATH)

for file_name in image_files:
    if file_name.lower().endswith(('.png', '.jpg', '.jpeg')):
        img = cv2.imread(f'{IMAGE_PATH}/{file_name}')
        rgb_img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)

        # Calculate 128-dimensional facial vectors
        encodings = face_recognition.face_encodings(rgb_img)

        if len(encodings) > 0:
            known_encodings.append(encodings[0])
            clean_name = os.path.splitext(file_name)[0].replace('_', ' ').title()
            known_names.append(clean_name)
            print(f"✅ Registered profile: {clean_name}")
        else:
            print(f"⚠️ Warning: No clear face detected in {file_name}. Skipping.")

print("🚀 Core profiles loaded! Launching hardware camera feed...")

# --- RECORD KEEPING ENGINE ---
def record_attendance(name):
    file_name = 'attendance.csv'

    if not os.path.exists(file_name):
        with open(file_name, 'w') as f:
            f.write('Name,Timestamp\n')

    with open(file_name, 'r') as f:
        lines = f.readlines()
        logged_names = [line.split(',')[0] for line in lines]

    if name not in logged_names:
        with open(file_name, 'a') as f:
            timestamp = datetime.now().strftime('%Y-%m-%d %H:%M:%S')
            f.write(f'{name},{timestamp}\n')
            print(f"✨ Attendance logged securely for: {name}")

# --- CAMERA FRAME INTERCEPT PIPELINE ---
camera = cv2.VideoCapture(0)

while True:
    success, frame = camera.read()
    if not success:
        break

    # Compress frame scale down to 1/4 layout for optimized processing speeds
    small_frame = cv2.resize(frame, (0, 0), None, 0.25, 0.25)
    rgb_small_frame = cv2.cvtColor(small_frame, cv2.COLOR_BGR2RGB)

    faces_in_frame = face_recognition.face_locations(rgb_small_frame)
    encodings_in_frame = face_recognition.face_encodings(rgb_small_frame, faces_in_frame)

    for face_encode, face_loc in zip(encodings_in_frame, faces_in_frame):
        matches = face_recognition.compare_faces(known_encodings, face_encode)
        face_distances = face_recognition.face_distance(known_encodings, face_encode)

        name = "Unknown"
        if len(face_distances) > 0:
            best_match_idx = np.argmin(face_distances)
            # Strict tolerance index threshold value lower than 0.50 yields optimal precision
            if matches[best_match_idx] and face_distances[best_match_idx] < 0.50:
                name = known_names[best_match_idx]
                record_attendance(name)

        # Scale face detection vector overlay mapping up to standard canvas layout size
        top, right, bottom, left = face_loc
        top, right, bottom, left = top * 4, right * 4, bottom * 4, left * 4

        box_color = (0, 255, 0) if name != "Unknown" else (0, 0, 255)

        # Render visual overlay feedback shapes onto the interface
        cv2.rectangle(frame, (left, top), (right, bottom), box_color, 2)
        cv2.rectangle(frame, (left, bottom - 30), (right, bottom), box_color, cv2.FILLED)
        cv2.putText(frame, name, (left + 6, bottom - 6), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (255, 255, 255), 2)

    cv2.imshow('CodeharborHub Attendance Monitor Terminal', frame)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

camera.release()
cv2.destroyAllWindows()

---

Running the Tracker

Execute the program from your terminal:

python main.py

A desktop tracking window will pop up. Stand directly in front of your camera. The model will instantly frame your profile with a Green Tag Box containing your name and create an entry inside your attendance.csv file.

Graceful Exit

To shut down operations safely without causing file stream corruptions, click on the video feed window and press the q key on your keyboard.

---

Advanced Next Steps for CodeharborHub Users

To scale this baseline project up for hackathons or portfolio milestones, try adding these enhancements:

• Anti-Spoofing Filters: Implement texture validation or blink tracking algorithms so users can't use static printed photos to cheat the scanner.
• SQL/Database Integrations: Swap out flat local .csv files for high-velocity database systems like SQLite or MongoDB to handle concurrent lookups cleanly.
• Web-Based Dashboard: Use Flask or FastAPI to feed the live canvas stream directly to a responsive frontend web UI panel.
